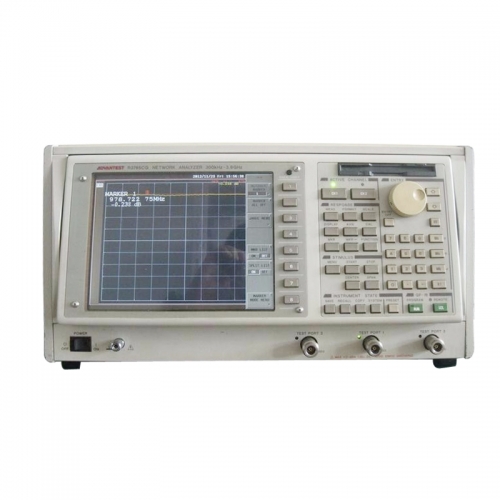

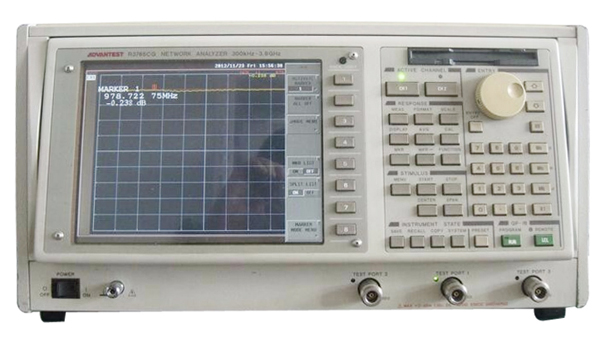

Advantest R3767CG/R3765CG network analyzer technical indicators
Features:
·Frequency range: 300kHz～3.8GHz (R3765CG)
·300kHz～8GHz (R3767CG)
·Excellent multi-port device measurement
·High-speed scanning time: 150μs/point (under 2-port full calibration conditions)
·Built-in 3-port or 4-port test device (optional)
·Software fixture (optional)
·Impedance conversion (optional)
·Port conversion (optional)
·Matching network (optional)
R3767CG/R3765CG network analyzer technical indicators
Measuring performance
Scan channel 2 channels (CH1, CH2)
Display channel 4 channels (CH1, CH2, CH3, CH4)
Track 2 tracks/channel (8 track display)
Measurement parameters S11, S21, S12, S22
OPT.11/13: S11, S22, S33, S21, S12, S31, S13, S23, S32
OPT.14: S11, S22, S33, S44, S21, S31, S41, S12, S32, S42, S13, S23, S43, S14, S24, S34
Calculate the impedance (Z) and admittance (Y) according to the parameters
Measurement format Rectangular coordinate representation: amplitude (linear/logarithmic), phase, group delay, VSER,
Complex number (real part/imaginary part)
Smith chart: cursor value, linear/logarithm, phase, complex number (real part/imaginary part), R+jX,
G+jB
Polar coordinate representation: cursor value, linear/logarithm, phase, complex number (real part/imaginary part)
