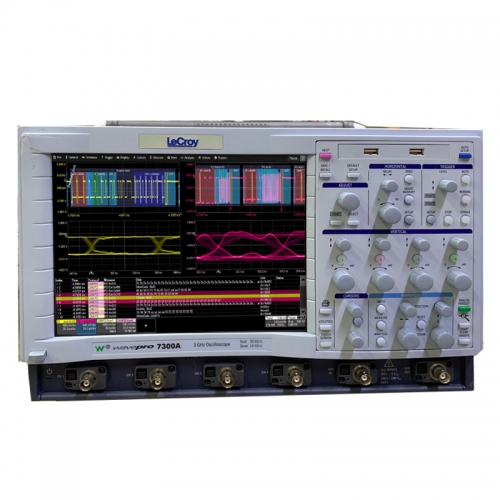

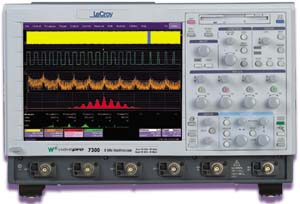

Detailed description:
· Bandwidth: 3 GHz
Rise time (typical value): 150ps
· Number of channels: 4
· Standard memory length: 2 M samples/channel
Maximum record length: 48 M samples/2 channels-24 M samples/channel
Maximum sampling rate (number of channels): 20 GS/s (2 channels)
· Repetitive sampling (RIS) rate: 200 GS/s
· Display: Color 10.4-inch flat-panel TFT-LCD with high-definition touch screen
· Single sampling rate: 10 GS/s
· Analysis tools: measurement and mathematical operation kit, small histogram, parameter mathematical operation, user customization
· Single sampling rate: 20 GS/s (2 channels)-10 GS/s (4 channels)
· Advanced display: simulation and color grade persistence
User interface: front panel knob/button or touch panel or mouse
· Network connection: 100BaseT
Bandwidth limit: 25 MHz; 200 MHz
Input impedance: 50 ohm +/-1.50%; 1 megohm +/-1.25%
Input coupling: DC 50 ohm; DC, AC, Gnd at 1 Mohm
Vertical resolution: 8 bits; up to 11 bits when using enhanced resolution (ERES)
Sensitivity (mv-V): 1 megohm: 2 mV-2 V/div; 50 ohm: 2 mV-1 V/div
· Jitter noise floor: 1 ps RMS
Trigger and interpolator jitter: <3 ps RMS typical
Maximum input voltage: 50 ohm: 5VRMS; 1 megohm: 100VMAX (DC-10kHz)
