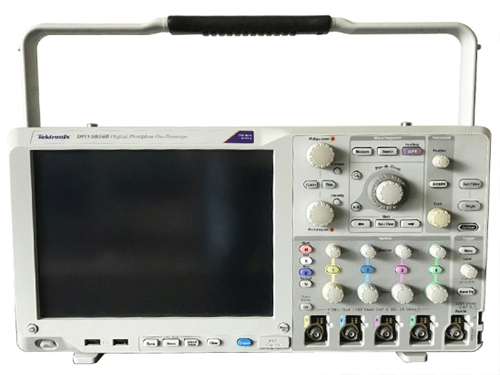

Tektronix Tektronix DPO5054|DPO5054B oscilloscope
Advantage
The complete acquisition performance is up to 2 GHz bandwidth, 10 GS/s * large sampling rate and up to 250 M point record length to ensure signal fidelity.
With 4 analog channels and 16 digital channels, one instrument can analyze analog signals and digital signals, and implement system-level troubleshooting for complex designs.
FastAcq Tektronix‘s proprietary FastAcq technology of the digital fluorescent display can quickly find glitches and incidents. The large capture rate is >250,000 waveforms/sec, which can display undetectable abnormal events faster.
The complete trigger set provides more than 350 trigger combinations, including setup time/hold time, serial packet content and parallel data, to quickly capture abnormal signals. The optional visual trigger function allows the definition of graphic triggers.
The Wave Inspector™ control conveniently searches, marks, and navigates within a long record length, and finds all occurrences of up to 8 events at the same time.
Built-in analysis tools 53 kinds of automatic measurement, measurement statistics, histogram waveform mathematics, user-defined filters, and custom MATLAB and .NET math plug-ins to analyze the device under test.
Parallel bus triggering and analysis (MSO series) automatically trigger, decode and search, quickly debug common serial buses
– I2C, SPI, RS-232/422/485/UART, USB2.0, MIL-STD-1553B, CAN, LIN, Ethernet and FlexRay.
Protocol decoding and serial triggering and analysis options automatically trigger, decode and search, and quickly debug common serial buses-I2C, SPI, RS-232/422/485/UART, USB2.0, Ethernet, MIL-STD-1553B , CAN, LIN and FlexRay.
The application software package comes standard with jitter and eye diagram analysis and more than 25 optional software packages, including power analysis, serial consistency, RF analysis, memory, etc., turn your oscilloscope into a dedicated tool.
Low-capacitance passive voltage probes are equipped with four 1 GHz or 500 MHz probes as standard, and have the industry‘s best <4pF capacitive load to ensure accurate measurement.
Oscilloscope overview
DPO5034B
MSO5054B
MSO5104B
DPO5104B
MSO5204B
DPO5204B
Input channel 4
Bandwidth 350 MHz 500 MHz 1 GHz 2 GHz
Calculated rise time 1 ns 700 ps 350 ps 175 ps
DC gain accuracy ±1.5%, derating at 0.10%/°C when it is higher than 30°C
The bandwidth limit depends on the instrument model: 1 GHz, 500 MHz, 350 MHz, 250 MHz, and 20 MHz
Effective digits (typical value) 6 digits (10 divp-p sine wave input at instrument bandwidth, 100 mV/div, 50? Input impedance, maximum sampling rate, 1k point record length)
Random noise (RMS, typical value, sampling mode, full bandwidth)
1 MΩ ≤(130 μV + 8.0% of the setting value of V/div) ≤(130 μV + 8.0% of the setting value of V/div) ≤(150 μV + 8.0% of the setting value of V/div) ≤(180 μV + V /div setting value 8.0%)
50 Ω ≤(130 μV + 8.0% of V/div setting value) ≤(130 μV + 8.0% of V/div setting value) ≤(75 μV + 6.0% of V/div setting value) ≤(150 μV + V /div setting value 6.0%)
*Large sampling rate (all channels) 5 GS/s 5 GS/s 5 GS/s 5 GS/s
*Large sampling rate (1 or 2 channels) – – 10 GS/s 10 GS/s
*Maximum equivalent time sampling rate 400 GS/s
Standard configuration maximum record length 25M 25M (4 channels)
50M (1 channel or 2 channels)
When the option 5RL is selected, the maximum record length is 50 M 50M (4 channels)
125M (1 channel or 2 channels)
When 10RL is selected, the maximum record length is 125 M 125M (4 channels)
250M (1 channel or 2 channels)
