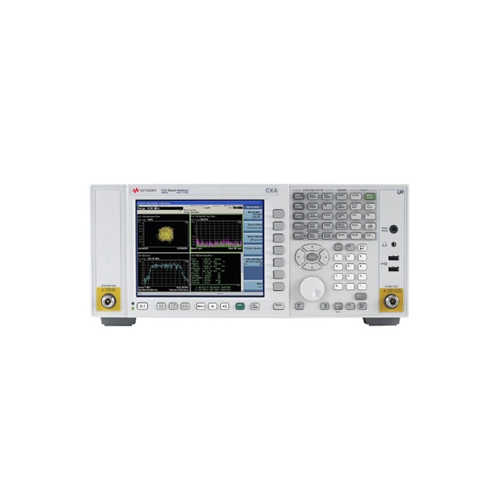

Agilent N9000A CXA signal analyzer, 9 kHz to 26.5 GHz
Main features and functions
· Use low-cost tools to gain insight into the essential characteristics of signals in signal analysis
Use the built-in tracking generator option to perform cost-effective stimulus response measurements
·Using X-series measurement application software to add important functions for analog demodulation, noise figure, phase noise, vector signal analysis, EMI pre-compatibility and other measurements
·Through practical operation, a deeper understanding of theoretical knowledge for a more in-depth analysis: use in combination with the training kit in the radio frequency and microwave teaching experiments
Function
Frequency range 9 kHz to 3 or 7.5 GHz; internal preamplifier option covering up to 7.5 GHz
Built-in tracking generator option to 3 GHz or 6 GHz
10 MHz (standard), 25 MHz (optional) analysis bandwidth
Performance
±0.5 dB absolute amplitude accuracy
+17 dBm third-order intercept (TOI)
-163 dBm display average noise level (DANL)
-66 dBc W-CDMA ACLR dynamic range (noise correction function activated)
Measurement applications and software
CXA supports more than 25 measurement application software, covering mobile communication, wireless connection, digital TV and general testing, etc. View the complete measurement application software list
Advanced signal analysis software that can run on CXA can support more than 70 signal formats 89600 VSA vector signal analysis software
Standard built-in Agilent one-button power measurement components
Evaluate CXA Quick Configuration*
Automatic test and communication interface
Comply with LXI C standard, and support SCPI and IVI-COM
USB 2.0, 1000Base-T LAN, GPIB
Compatible with ESA and other X series remote programming languages
Universal X series user interface / open Windows XP operating system
Describe
Know the nature of signals
A low-cost signal analyzer is not only to obtain the basic information of the signal, but also to help you fully grasp the in-depth nature of the signal. This is the advantage of CXA signal analyzer as a low-cost signal analysis tool in the industry. Its functions provide a solid foundation for cost-effective testing and seamless integration with other X-series signal analyzers. At the same time, CXA is also an excellent tool for teaching radio frequency technology and signal analysis. CXA brings you the indispensable functions of signal analysis and the excellent scalability of the X series-helping you to understand the essence of signals.
The CXA signal analyzer is a member of the X series of test instruments. It is an evolutionary method for signal analysis using instruments, measurements, and software. Its flexibility can meet your business and technical requirements in multiple products and projects-both now and in the future.
