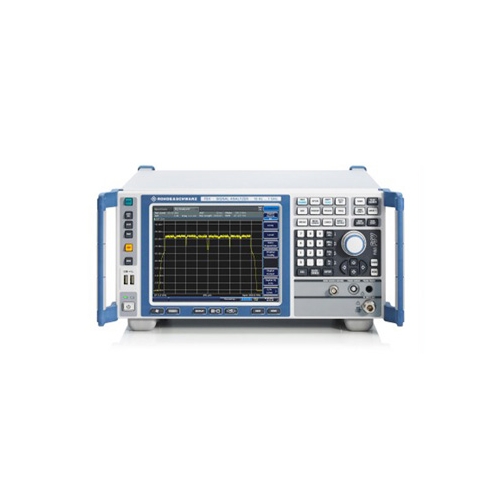

Rohde&Schwarz FSV7 7G Spectrum Analyzer/Signal Analyzer|9KHz to 7GHz
Brand: Rohde & Schwarz, Germany | ROHDE&SCHWARZ | R&S FSV signal and spectrum analyzer
main feature
· The frequency range is up to 3.6 GHz / 7 GHz / 13.6 GHz / 30 GHz.
· 40 MHz signal analysis bandwidth
The total level uncertainty in the 7 GHz band is 0.4 dB
· Support WCDMA / HSPA, LTE, WiMAX, WLAN, analog modulation analysis software
· Support R&S NRP series power sensors, with a wide range of power measurement functions
· Easy field upgrade options
Phase noise at 10 kHz frequency offset is –106 dBc/Hz
· +15 dBm third-order intercept point (TOI), display average noise level (DANL) equal to –155 dBm at 1 Hz bandwidth
· Removable hard disk to ensure data security
· Using touch screen and control panel, intuitive operation
Product Introduction
R&S FSV is a signal analyzer for RF system development, production, installation, and service with equal emphasis on performance and cost. It has the fastest speed and widest application in the industry.
Product Features
1) Not only meets today‘s standards, but also takes into account future standards in advance
· All-digital back-end ensures high accuracy and excellent repeatability of measurement results
· I/Q memory depth is the largest among similar products, which can record long signal sequences
· Take the lead in adopting 40 MHz signal analysis bandwidth among similar products; suitable for all WiMAX standards and WLAN 802.11n
2) The measurement cost is low, the productivity is high, and the production efficiency is improved
· The measurement speed is five times faster than other signal analyzer products
· Customized production application test program
· Efficient remote operation
3) Rich functions, excellent performance, suitable for laboratory use
· Excellent RF performance in mid-frequency range analyzers
· Level measurement accuracy within 7 GHz is unmatched
· Power measurement function, which can be used for digital communication system analysis
· A variety of marking and trajectory functions
· ACP measurement: Contains many predefined standards, easier to set up
4) Intuitive operation Rohde&Schwarz FSV7 7G spectrum analyzer/signal analyzer|9KHz to 7GHz
Brand: Rohde & Schwarz, Germany | ROHDE&SCHWARZ | R&S
R&S FSV signal and spectrum analyzer
main feature
· The frequency range is up to 3.6 GHz / 7 GHz / 13.6 GHz / 30 GHz.
· 40 MHz signal analysis bandwidth
The total level uncertainty in the 7 GHz band is 0.4 dB
· Support WCDMA / HSPA, LTE, WiMAX, WLAN, analog modulation analysis software
· Support R&S NRP series power sensors, with a wide range of power measurement functions
· Easy field upgrade options
Phase noise at 10 kHz frequency offset is –106 dBc/Hz
· +15 dBm third-order intercept point (TOI), display average noise level (DANL) equal to –155 dBm at 1 Hz bandwidth
· Removable hard disk to ensure data security
· Using touch screen and control panel, intuitive operation
Product Introduction
R&S FSV is a signal analyzer for RF system development, production, installation, and service with equal emphasis on performance and cost. It has the fastest speed and widest application in the industry.
Product Features
1) Not only meets today‘s standards, but also takes into account future standards in advance
· All-digital back-end ensures high accuracy and excellent repeatability of measurement results
· I/Q memory depth is the largest among similar products, which can record long signal sequences
· Take the lead in adopting 40 MHz signal analysis bandwidth among similar products; suitable for all WiMAX standards and WLAN 802.11n
2) The measurement cost is low, the productivity is high, and the production efficiency is improved
· The measurement speed is five times faster than other signal analyzer products
· Customized production application test program
· Efficient remote operation
3) Rich functions, excellent performance, suitable for laboratory use
· Excellent RF performance in mid-frequency range analyzers
· Level measurement accuracy within 7 GHz is unmatched
· Power measurement function, which can be used for digital communication system analysis
· A variety of marking and trajectory functions
· ACP measurement: Contains many predefined standards, making it easier to set up
4) Intuitive operation
· Touch screen operation
· Hotkey design is adopted for easy access to all main functions
· R&S FSV has unparalleled ease of operation
5) Easily transition to next-generation signal analysis products
· It is remotely compatible with R&S FSP and R&S FSU, and the product transition is convenient
· The function is compatible with the existing Rohde & Schwarz spectrum and signal analyzers, so that users can quickly become familiar with the use of the product
· Special modes compatible with R&S FSP and R&S FSU make it possible to continue to use existing remote control programs
6) Low cost during the life cycle
· Easy on-site upgrades with options
· The system is easy to expand and can meet changes in application requirements at any time
· Free firmware upgrades to keep the product up to date
