Spectrum Analyzer

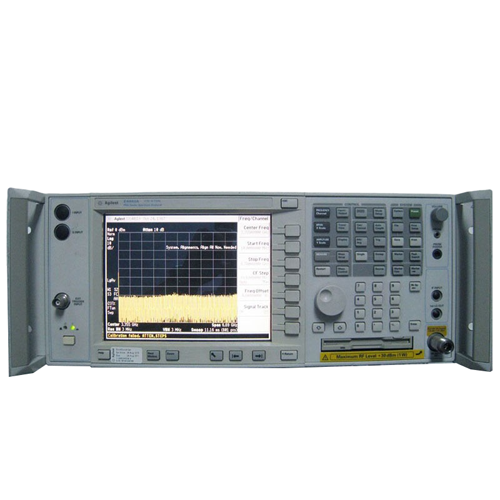

E4445A PSA spectrum analyzer

Model:
E4445A PSA spectrum analyzer, 3 Hz to 13.2 GHz
Product Brand:
Agilent
Fixed Telephone:
0755-85292815
Contact Number:
13590213125 (WeChat)
Contact QQ:
2538252977
Business Scope:
Leasing, sales, recycling, maintenance

    E4445A|Agilent E4445A|Agilent|PSA Series|Spectrum Analyzer|3Hz to 13.2GHz
    Brand: Agilent Agilent
    performance
    *+/-0.24dB amplitude accuracy
    *-155dBm/Hz displayed average noise level (DNAL)
    *Phase noise at 10kHz offset: -118 dBc/Hz
    *81 dB W-CDMAACLR dynamic range
    Analysis bandwidth
    *40 or 80 MHz analysis bandwidth supports the capture and measurement of complex signals. Check:
    *-78dB (rated value) third-order intermodulation
    *0.5 dBIF frequency response
    *-78dB (rated value) third-order intermodulation
    flexibility
    * Flexible platform with 16 optional and easy-to-use built-in measurement software PSA measurement software
    *The power kit can perform one-button power measurement for more than 20 wireless systems. PSA power kit one-button power measurement
    describe
    Complex RF and microwave signals within the measurement range of the E4440 series.
    E4443A 3Hz-6.7GHz
    E4445A 3Hz-13.2GHz
    E4440A 3Hz-26.5GHz
    E4447A 3Hz-42.98GHz
    E4446A 3Hz-44GHz
    E4448A 3Hz-50GHz

    brand new! HSDPA/HSUPA measurement special parts
    brand new! Built-in receiver special parts
    View PSA High Bandwidth Digitizer Video Demo
    Learn about one-button power measurement
    Learn about 40/80 MHz bandwidth digitizer information
    Learn more about PSA calibration software

    Main features:
    Dynamic Range
    *-166dBm display average noise level (DANL)
    *+17dBm third-order intermodulation (TOI) (+19 dBm typical)
    *-116dBc/Hz phase noise (10 kHz offset) (-118dBc/Hz typical)
    Precision
    *±0.62 dB amplitude accuracy (±0.24 dB typical)
    *±0.38 dB frequency response (±0.11 dB typical)
    *±0.07 dB logarithmic amplification linearity
    speed:
    *Fast low-level parasitic search
    *<30ms fast ACP measurement
    *50 measurement/second local update rate, 45 measurement/second remote measurement
    Standard features:
    For more features and information, please refer to the PSA series manual
    *Fully digital IF with auto range function
    *Phase noise optimization
    *Complete detector kit
    *160 resolution bandwidth settings (10% step)
    *2dB step attenuator
    *FFT and sweep frequency measurement mode
    *Gate pass selection sweep
    *Full set of one-button power measurement
    *Use the built-in CISPR and MIL standard pre-compatible EMI detector and bandwidth for EMI measurement
    Optional features:
    *40MHz or 80 MHz bandwidth digitizer
    *Built-in preamplifier (Option 1DS: 100 kHz-3 GHz; Option 110: 10 MHz-6.7 GHz)
    *Easy to use built-in special keys for PSA series measurement
    *Modulation analysis and link to 89601A vector signal analysis software
    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
