Main features and technical indicators
Narrowband and broadband detection
100 dB dynamic range
Real-time scanning speed (40 ms/scan)
S-parameter comprehensive tester
Synthetic signal source with 1Hz resolution
Standard LAN interface
Standard built-in Keysight Instruments BASIC (IBASIC)
Standard 2, 6 and 12 port switch tester
describe

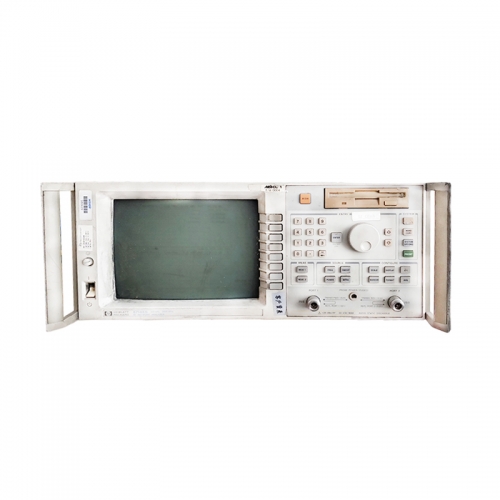

Keysight 8714ES economical RF network analyzer provides excellent speed, accuracy and automatic measurement characteristics in a compact box, suitable for the manufacture, inspection and maintenance of RF components.
Keysight 8714ES is an S-parameter test device with two-port vector error correction, which can provide device S-parameter sum measurement. 2 independent channels can measure and display 2 parameters, such as S21 (transmission) and S11 (reflection) in various formats, including delay and SWR on rectangular coordinates, polar coordinates and Smith charts.
The ES type instrument includes 60dB source attenuation as a standard feature, and provides 70dB power level control for testing active and passive devices. Can choose 50Ω type and 75Ω type.
